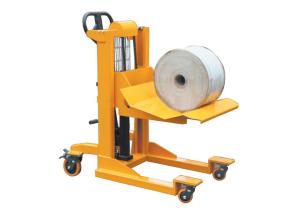

MRL Series High Strength Electric Lifting Arc Panel Roll Trolley

Name: MRL Series High Strength Electric Lifting Arc Panel Roll Trolley
Brand: Sinolift
Price: 1 USD

Quality MRL Series High Strength Electric Lifting Arc Panel Roll Trolley wholesale

Brand Name : Sinolift

Model Number : MRL

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 500 sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product name : MRL Series High Strength Electric Lifting Arc Panel Roll Trolley

Rated capacity : 700-1000kg

Operation : Manual

Lifting height : 865-1500mm

Reel tray wdith : 700mm

Overall length : 1165/1350mm

Overall wdith : 700/800mm

Overall height : 1130/2060mm

Net weight : 150/220kg

Warranty : 1 year

After service : on-line service,free spart parts

Contact Now

MRL Arc Panel Roll Handling Trolley with the simple hydraulic hand pump

Structure made of high resistance steel rolled sections to ensure the highest degree of strength and durability.
Large media and heavy material rolls are handled quickly and easily.
The simple hydraulic hand pump makes lifting effortless.
Material damage is reduced or eliminated when moving rolls.
ERL1000T is with electric lifting, high-efficiency for heavy loading.

Model		MRL0786	MRL1086	MRL1015
Operation		Manual
Load capacity	(kg)	700	1000	1000
Lifting Height	(mm)	865	865	1500
Max.width of reel/roll	(mm)	1550	1550	1550
Max.diameter of reel/roll	(mm)	800	800	800
Reel Tray Wdith	(mm)	700	700	700
Overall Length	(mm)	1165	1165	1350
Overall Wdith	(mm)	700	700	800
Overall Height	(mm)	1130	1130	2060
Net Weight	(kg)	150	160	220
